Gemini is proud to present the UX-16, professional 16 channel UHF PLL wireless headset microphone. This wireless microphone unit features 16 band UHF synthesizer controlled frequencies, phase locked loop (PLL) circuitry, super high sensitivity with extremely low noise transmission & reception, stable & quality SMT assembled PCB module, and comes with an assortment of microphones, ie., XM-16, uni-directional dynamic Mic, HSM-2, electret condenser unit Mic, or LAV-1, electret condenser unit Mic. The UX-16 operates on AA batteries and has a fixed-length UHF antenna permanently mounted on the unit and has an operating range of 250 feet . The UX-16 is the perfect wireless microphone unit for professor in a large class room, drummers in a loud band, and of course DJs over run with wired connections.
Specificatii tehnice
Features:
16 band UHF synthesizer controlled frequencies
Phase locked loop (PLL) circuitry
Super high sensitivity with extremely low noise transmission & reception
Stable & quality SMT assembled PCB module

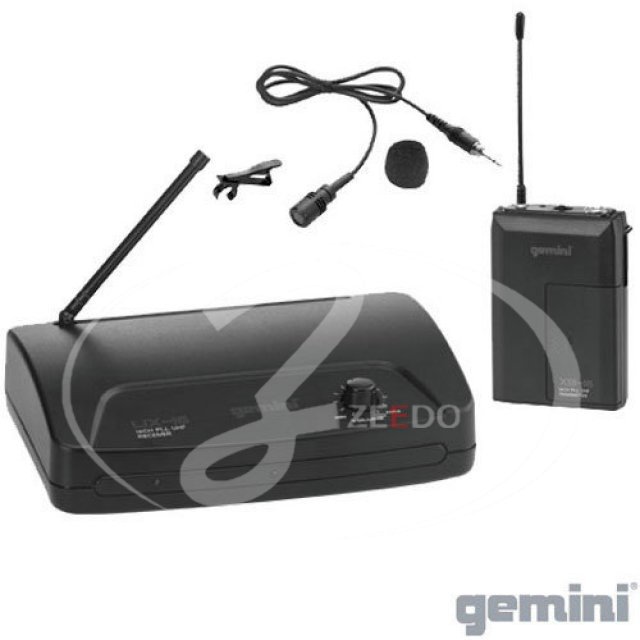

UX-16 L includes UX-16 Receiver, XB-16 body pack transmitter & LAV-1 lavalier
LAV-1 has an electret condenser unit microphone
Technical Data:
UX-16:
Frequency range: Europe: 863 865MHz
Case: Mini case
Receiving System: PLL synthesized
Receiving Mode: 16CH, Single Channel, Non-diversity
Frequency Stability: +/- 0.05%
Receiving Sensitivity: At 8 dBuV over 80dB S/N ratio
Image & Spurious Rej: 80 dB minimum
Selectivity: > 50dB
Modulation Mode: FM
IF Frequency: 1st: 56MHz 2nd: 10.7MHz
Dynamic Range: >96dB
Tone Signal: 32.768KHz
S/N Response: Over 94dB, at 48KHz deviation and 60dBuV antenna input
AF Response: 50Hz to 15KHz(+/-3dB)
T.H.D. : <1%(at 1KHz)
Power Supply: DC 12 ~ 18V
Audio Output: Balanced & unbalanced output
Current Consumption: 130mA +/- 10mA
Dimension (mm) W x H x D: 130 x 36 x 92 mm
XB-16:
Mic Type: 16CH, Bodypack transmitter
Frequency range: Europe: 863 865MHz
RF Power Output: 10mW(max.)
Oscillation Mode: PLL synthesized
Frequency Stability: +/- 0.005%
Maximum Deviation: +/-48KHz with limiting compressor
Spurious Emission: >60 dB below carrier frequency
T.H.D. : <1%(at 1KHz)
Battery: DC 3V(1.5v x 2 AA size batteries)
Tone Key: 32.768KHz
Mic Unit: Uni-directional condenser unit
LED Indicator: Power ON-OFF and low battery
Current Consumption: 65 +/- 5mA
Dimension(mm)WxHxD: 66 x 97 x 25 mm
LAV-1:
Electret condenser unit lavalier microphone
