The Electro-Voice� ZX1i is the new standard of uncompromising audio performance and versatility in an easy-to-install, compact sound reinforcement package. The ZX1i"s enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design allows for exceptional low-frequency response without vent noise.
ZX1i installation is incredibly simple with the included QuickSAM mounting system. The QuickSAM system is a unique, integrated mounting bracket that is virtually foolproof. It allows installers to simply snap the speaker onto the bracket, and tighten it to the desired position. For array mounting, an optional array bracket kit is available, which allows multiple units to be mounted together for a variety of configurations. All Zx1i "t" versions use a special circuit that, when in transformer mode, re-configures the network to a current-actuated, Hi-Pass filter at the transformer primary. It gently rolls off the lowest frequencies to maintain a safe load on the amplifier without affecting higher (vocal) frequencies and the program continues without interruption. Low-frequency current is limited through the transformer-eliminating low-frequency saturation.
Automatic Saturation Compensation allows many speakers to be run on a distributed line with a 50Hz Hi-Pass filter before the amplifier, regardless of the number of speakers on the same line (the number of tapped watts cannot exceed the amplifier rating). With the same 50Hz Hi-Pass, 10 speakers on transformers will have the same full sound as a single speaker at eight ohms.
Specificatii tehnice
Frequency Response (-3dB) 60 - 20000 Hz
Frequency Response (-10dB) 48 - 20000 Hz
Sensitivity 1W/1m 94 dB
Max. SPL / 1m (calc) 123 dB
Coverage (nominal -6dB) H 90
Coverage (nominal -6dB) V 50
Rotatable Horn Yes
System Power Handling (continuous/program/peak) 200/400/800 Watts
LF Transducer EV8L
HF Transducer DH2005
Color Black

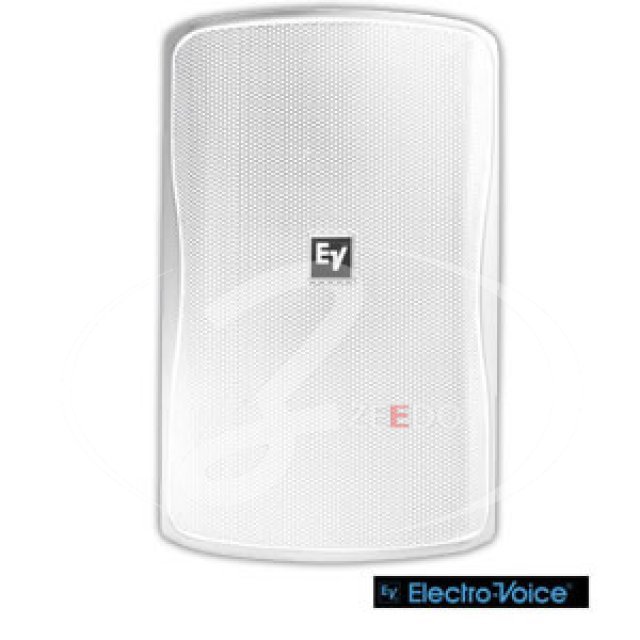

Color White
Flying Yes
Outdoor Yes
Chassis Size 8 inches
Internal Crossover Yes
Speaker Type Fullrange, Mid-High, Two-Way
Weight Net 8.4 kg ( 18.52 lbs )
Dimensions (HxWxD) 451 x 282 x 263 mm
(17.76" x 11.1" x 10.35")
