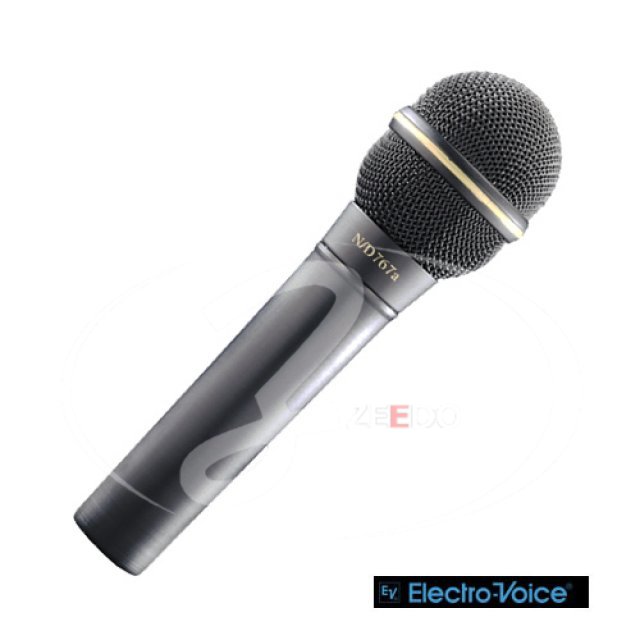

The new N/D767a presents optimal performance in a live sound environment.The 767a vocal microphone utilizes EV�s new VOB� (vocally optimized bass) technology to provide
the performer with reduced low-end distortion and eliminates the muddiness found in other microphones. Combined with EV�s industry first neodymium based magnet structure, the new N/D767a offers the power and clarity to �cut through the mix.�
� VOB� technology provides tailored bass response for
controlled �proximity effect� and exceptional vocal clarity
� Supercardioid pattern for superior feedback rejection
and acoustic isolation.
� Multistage shock mount for unmatched
low-handling noise.
� Neodymium based magnet structure provides greater
sensitivity and signal-to-noise ratio.
� Warm Grip� handle for more comfortable feel.
Operation
The low frequency response of the N/D767a microphone varies with the distance from the sound source. Known as �proximity effect,� maximum bass response is produced in
�close-up� use with the microphone 1/4 inch from the sound source. Normal bass response is experienced with working distances greater than 24 inches.Working close to the microphone will produce a more robust sound. Close up positioning of the microphone will also reduce the potential for feedback from the sound reinforcement system.When close-talked, the bass-boost provides an increase in overall microphone output level.The mixer gain may be
proportionately reduced, resulting in a reduction of the system�s sensitivity to feedback caused by sound entering the microphone from the loudspeakers.
Specificatii tehnice
Element: Dynamic
Polar Pattern: Supercardioid
Impedance, Low-Z balanced 300 Ohms
Connector Type 3-pin XLR
Open Circuit Voltage 3.1 mV/Pascal
Audio Frequency Response 35 - 22,000 Hz Near Field 70 - 22,000 Hz Far Field
Mic Type: Handheld
Wired/Wireless Wired
Finish: Non-reflecting Black
Case Material: Metal
Weight Net 260 g ( 9.17 oz )
Dimensions (Height X Max Diameter) 181 x 52 mm, (7.13" x 2.05")
