Detalii

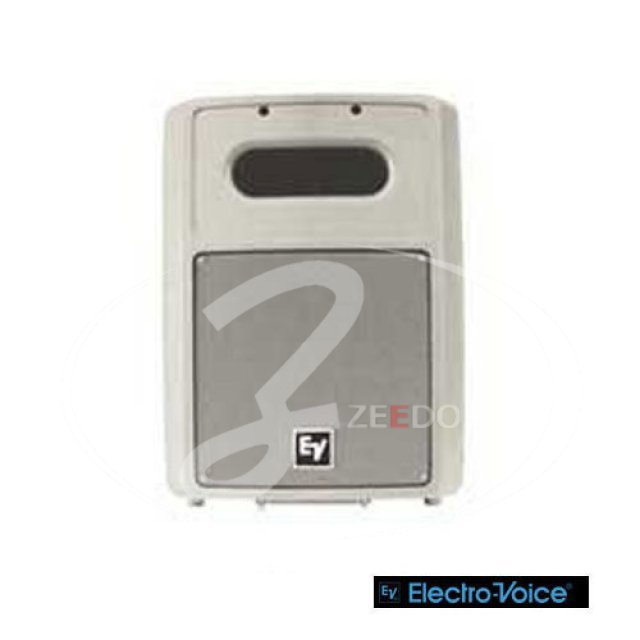

The Electro-Voice SB122 W is very compact, lightweight, powerful, and affordable. The SB122 is quite possibly the smallest, most powerful subwoofer in the world. It packs 400-watt continuous - and 1,600-watt peak - power handling into a 33 lbs (15 kg) package, the SB122 is deceptively powerful. It also employs the new EVS12SB 12-inch, long-excursion woofer for outstanding low-frequency response.
The SB122 sports a half-face grille with grille cloth, and a newly stylized EV logo is great. The best feature set includes a top mounted pole cup, ergonomic carrying handle, large port, and a built-in low-pass filter that eliminates the need for external processing. Of course, external processing is still an option for professionals seeking greater overall system performance gains.
Specificatii tehnice
Features:
Lightweight: Only 33 lbs/15.0 kg
Integral handle
Colour: white
400 Watt continuous, 1,600 Watt peak power handling
Parallel Neutrik Speakon high current input connectors
Cast frame EVS12SB 12-inch high excursion subwoofer driver
Integral low-pass filter -- No additional amplifier or processor needed
Technical Data:
Freq. Response* (-3 dB): 52 Hz - 145 Hz
Freq. Range* (-10 dB): 43 Hz - 200 Hz
Recommended/High-Pass Frequency: 40 Hz
Sensitivity* (SPL 1W/1m): 99 dB
Max Calculated SPL: 131 dB
Power Handling (Cont.): 400 Watts
Power Handling (Peak): 1,600 Watts
LF Transducer: EVS12SB, 12 in (305mm)
Recommended Crossover/Frequency Range, Biamp: 80 Hz - 160 Hz
Impedance: 8 Ohms
Connectors: (2) Neutrik Speakon NL4
Dim (H x W x D): 23.1" x 16.9" x 12.3" (586mm x 429mm x 312mm)
Net Weight: 33 lbs (15.0 kg)
Shipping Weight: 36.4 lbs (16.5 kg)
* Half Space measurement.
