Detalii
Specificatii tehnice

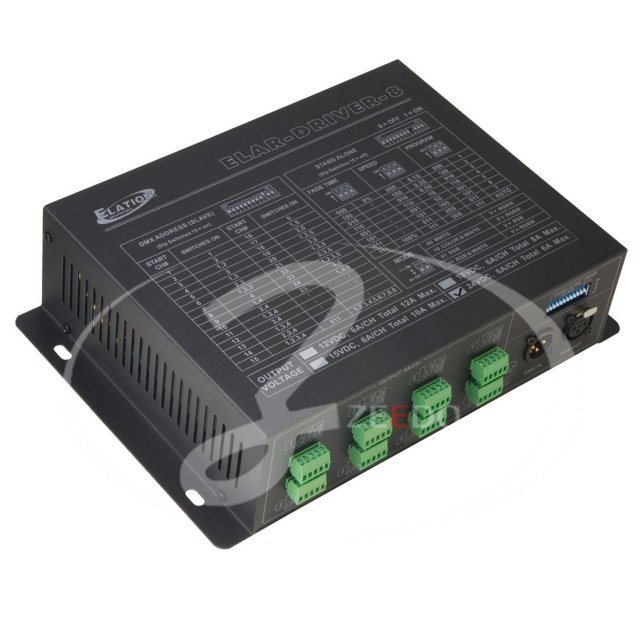

- Universal 12V LED Driver with Built-In Power Supply
- 12 position dipswitch for DMX addressing and function set up
- USITT DMX512 (1990) compatible
- DMX and Stand Alone operation modes
- 0- 100% Stand Alone Fade Time setting
- 0.1S 30S Stand Alone Chase Speed setting
- 7 built in programs
- Output:8x terminal output RGBW, 12VDC, 6A/CH, Total 12A Max.
- All Outputs Individually Controllable by DMX (32 DMX channels)
- DMX Output Operation Modes:
Pure White (Intensity) (One DMX Channel)
Color with white saturation (Two DMX Channels)
* RGB (Three DMX Channels)
* RGBW (Four DMX Channels)
- Power Input (selectable) 110- 120VAC (3.2A) / 220- 240VAC (1.6A) 50/60Hz
- Power Failure Memory
- DMX Input: 3-Pin XLR male connector
- DMX Output: 3- Pin XLR female connector
- Dimensions: 286mm x 191mm x 74mm
- Weight: 3kg
- Operation Temperature: -10 degC to +50 degC
- Storage Temperature: - 20 degC to +70 degC
