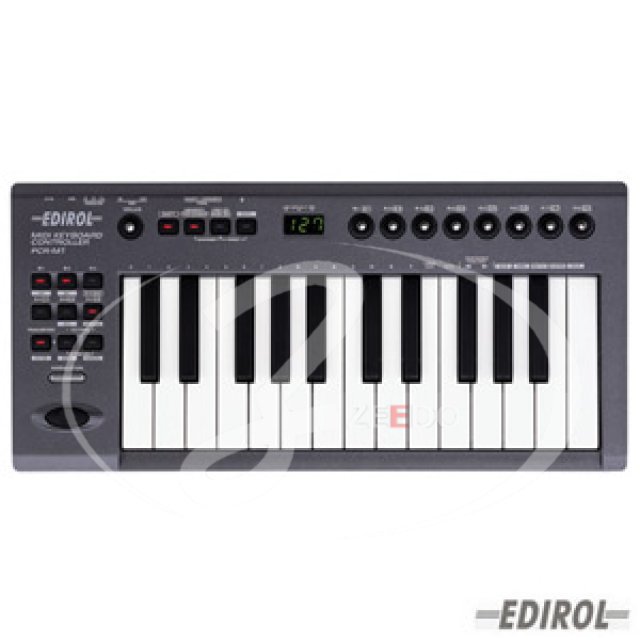

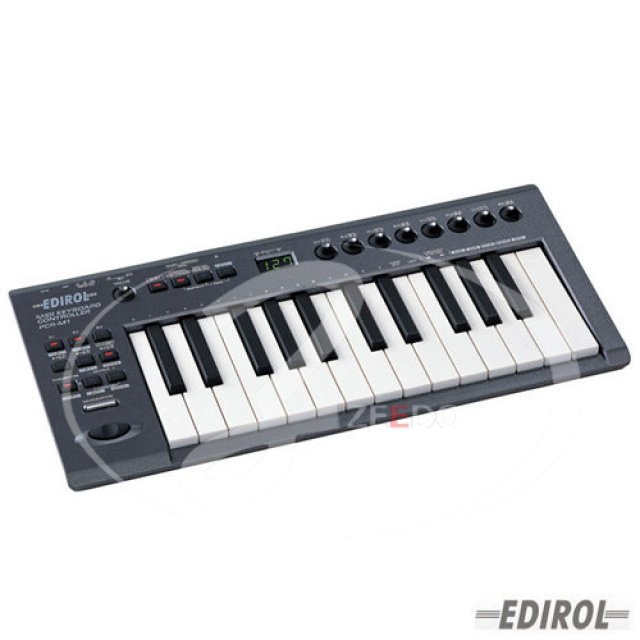

The Edirol PCR-M1 is the most compact, powerful USB MIDI Keyboard Controller. This incredibly slim device is based on the highly-popular PCR-1, but lacks the audio I/O of the PCR-1 and adds a number of new MIDI features to bring it closer to the larger PCR-series MIDI controllers. Like the PCR-30, 50 & 80, the PCR-M1 includes a 1x1 MIDI interface, sustain pedal connection and expression pedal connection. Unlike any other PCR-series controller, the PCR-M1 offers a rotary encoder that can be assigned to a number of controls including scrolling control maps, adjusting velocity, changing MIDI channels, & more. The PCR-M1 also includes three different options for drawing power: 1) USB-Powered, 2) AC Adapter (optional), and 3) Powered by 4 AAA batteries.
Also, like its larger brothers, the PCR-M1 offers V-Link support for control of video devices directly from your keyboard. The PCR-M1 is incredibly versatile in terms of control. It offers 27 different parameter controls available from 16 different physical controls and functions with the powerful PCR-Editor available for PC & Mac.
The PCR-M1 uses Edirol"sS.L.I.M. technology to offer a very nice playable action with a very short throw & very little side-to-side play in the keys. It may be small, but this feature-packed device is definitely not a toy!
Specificatii tehnice
25 Standard Width Velocity-Sensitive Key
S.L.I.M. Keyboard

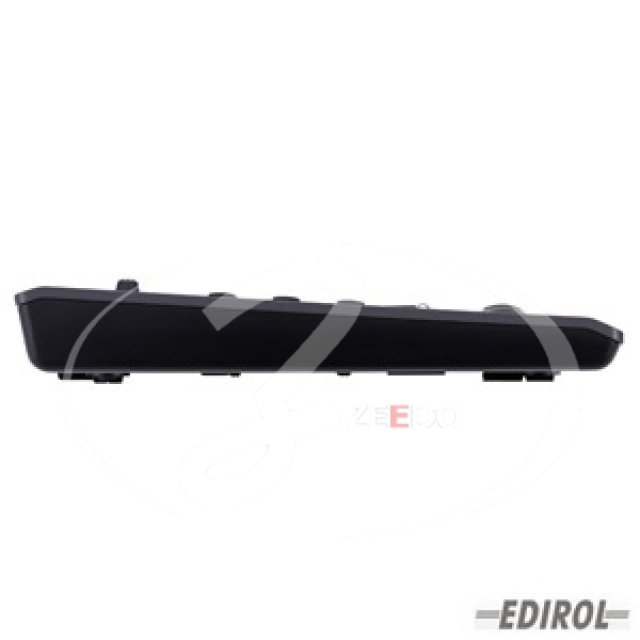

Thin (28 mm / 1-3/16"), Light (1.5 kg / 2 lbs. 11 oz) Body
27 Full Assignable Controllers: 8 Knobs, 6 Buttons, and 2 Pedal Port
Separate Pitch Bender & Modulation Control
16 Control Map Memory Location
MIDI In/Out Port
Expression and Sustain Pedal Ports (with included 6.5mm adapters)
3-way Power Supply: USB/Battery/AC Adaptor
Downloadable Memory Sets via www.edirol.com
PCR Editor Software
Gig Bag
V-LINK
Connectors:
- USB connector: Type B, MIDI IN/OUT
- Pedal: Expression, Sustain
Keyboard:
- S.L.I.M. Keyboard
- 25 Keys (with velocity)
Controllers:
- Top Panel:
- Rotary encoder
- Assignable Rotary Volume Knobs (R1--8)
- Assignable Buttons (B1--6)
- Mode Switch x 4
- Octave Shift Switch "UP / DOWN"
- Transpose Switch
- Pitch Bend Switch
- Modulation Switch

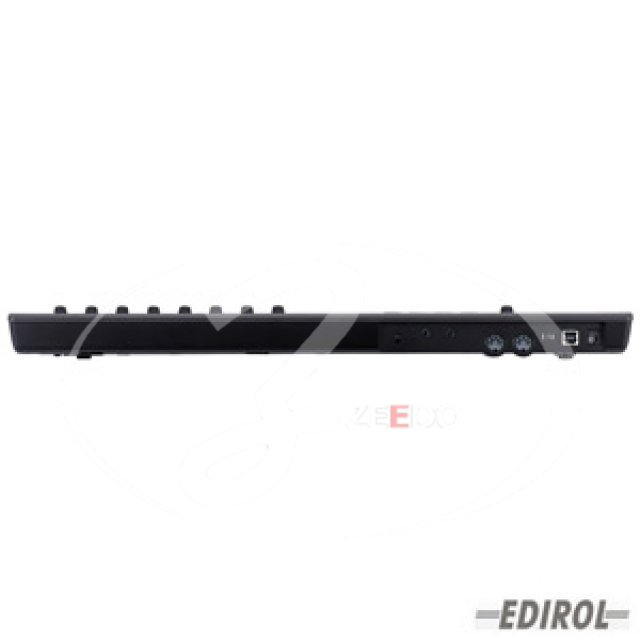

Rear Panel:
- Power Switch (DC / OFF / USB)
- DC IN (200 mA)
Display: segments, 3 characters (LED)
Power Supply:
- USB / AC Adaptor: PSA Type (optional)
- Battery 4 x AAA Type
Current Draw: 400 mA
Dimensions:
450 (W) x 220 (D) x 28 (H) mm
17-3/4 (W) x 8-11/16 (D) x 1-1/8 (H) in
Weight: 1.5 kg / 3 lbs 5 oz
Accessories:
- CD-ROM
- USB Cable
- Owners Manual
- Template Sheets
- PEDAL Conversion Cable x 2
- Gig Bag
System Requirements
Macintosh
- Operating System: MacOS 9.x, and OS X
- Computer: USB ready Apple Macintosh
- CPU/clock: PowerPC G3/233 MHz or higher
- Memory (RAM): 64 MB or more
- OMS 2.3.3 or later. FreeMIDI 1.35 or later*
* For MacOS 8.5, 8.6, 9.x. Plug and play on MacOS X.
Windows
- Operating System: Microsoft Windows Me/98/98SE/2000/XP
- Computer: Windows compatible equipped with a USB port
- CPU/clock: CPU/clock: Intel Pentium Celeron or Intel compatible Processor/600 MHz or higher
- Memory (RAM): 64 MB or more
- USB Chipset: Intels USB chipset is recommended
