Detalii

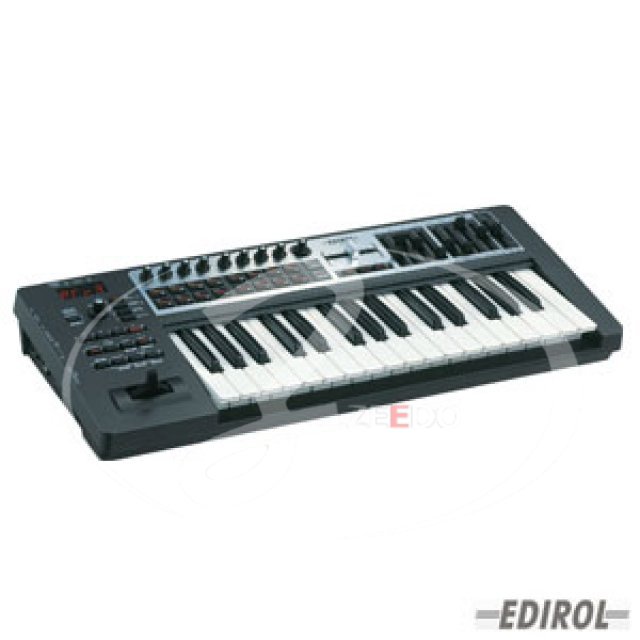

The PCR-300 introduces the next generation of EDIROL’s popular MIDI keyboard controllers. In addition to providing more physical controls than previous models, the PCR-300 also offers new innovative and intuitive controls. This controller is solidly built, and optimized for both music production and live performance.
Specificatii tehnice
Features:
• 32 velocity-sensitive keys, now with aftertouch
• 50 fully assignable controls, and editor software (Mac & PC)
• 18 velocity pads
• New, unique crossfader feature
• High-quality keyboard mechanism, and durable, stable body
• “Dynamic Mapping” — intelligent assignment of controls
• Convenient location of connections on side panel
• USB bus-powered
• MIDI merge
• “Cakewalk Production Plus Pack” included (SONAR LE, Project 5 LE, and Dimension LE)
Technical Data:
• Keyboard: 32 keys (with velocity and channel aftertouch)
• Controllers:
- Pads [A1]–[A9], [B1]–[B9]
- Buttons [L1]–[L4], [C1]–[C3]
- Knobs [R1]–[R9]
- Sliders [S1]–[S9]
- Crossfader [H1]–[H2]
- Foot Pedals [P1], [P2]
- Bender Lever [BEND], [MOD]
- Keyboard Aftertouch [AFTERTOUCH]
• Display:
- 7 segments
- 4 characters (LED)
• Side Panel:
- Power Switch (USB Bus/OFF/DC IN)
- MIDI Merge Switch (ON/OFF)
• Connectors:
- Hold Pedal Jack: 1/4 inch phone type
- Expression Pedal Jack: 1/4 inch TRS phone type
- MIDI Connectors: IN, OUT
- USB Connector
- DC IN Jack
• Power Supply: DC 9 V (AC Adaptor) or USB Bus Power
• Current Draw:
- 300mA (AC Adaptor)
- 300mA (USB Bus Power)
• Accessories:
- PCR-300/500/800 CD-ROM
- USB Cable
- Setup Guide
- Owner’s Manual
- Roland Software License Agreement
• Options:
- AC Adaptor: PSB-120/PSB-230EU/PSB-230UK/PSB-240A
- Pedal Switch: DP-2/DP-6
- Expression Pedal: EV-5/EV-7
• Size and Weight:
- Width: 606 mm; 23-7/8 inches
- Depth: 251 mm; 9-7/8 inches
- Height: 91 mm; 3-5/8 inches
- Weight: 2.9 kg; 6 lbs. 7 oz.
