Edirol - Directional microphone CS-50

---

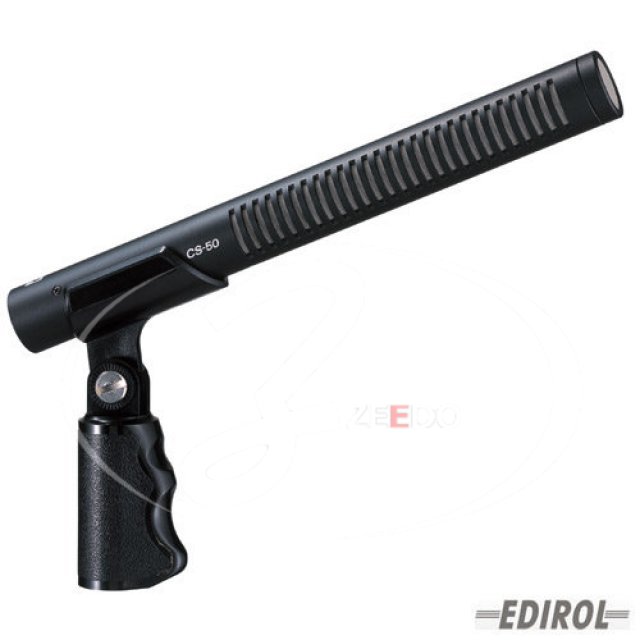

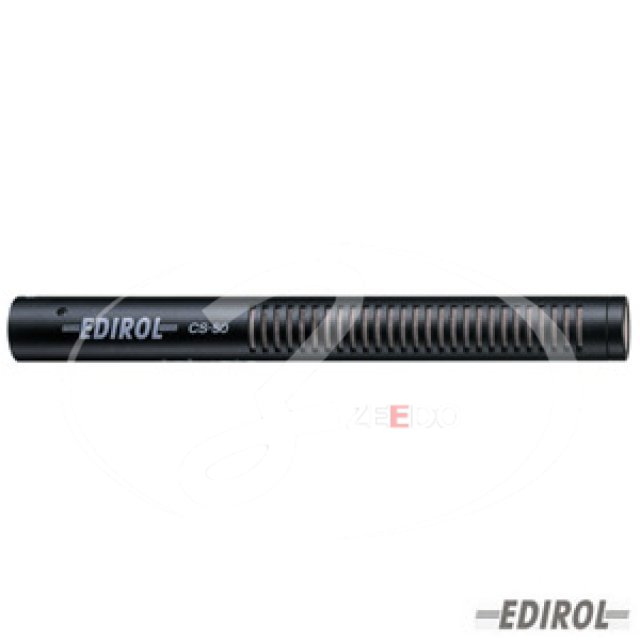

   The Edirol CS-50 is a compact, light-weight stereo condenser microphone designed for the R-4 videographer, broadcaster, and sound designer. The CS-50 features bass roll-off capability as well as selectable wide stereo or narrow (focused) polar patterns.

---



---

   • Back Electret Condenser

---

   • Polar Pattern: Line Cardioid

---

   • Frequency Response

---

   50 - 20,000Hz: Open Circuit Sensitivity

---

   14.9 mV/Pa, -36.5 dBV @ 1 Pa

---

   • Impedance 200 Ohms

---

   • Maximum Input S.P.L.

---

   126 dB S.P.L (at 1kHz, 1% T.H.D. Typical)

---

   S:N

---

   • Greater than 70 dB (at 1kHz/1Pa)

---

   • Power Requirements 48 V Phantom x 2ch

---

   • Current Consumption 3.8 mA (Typical)

---

   • Weight 83 g

---

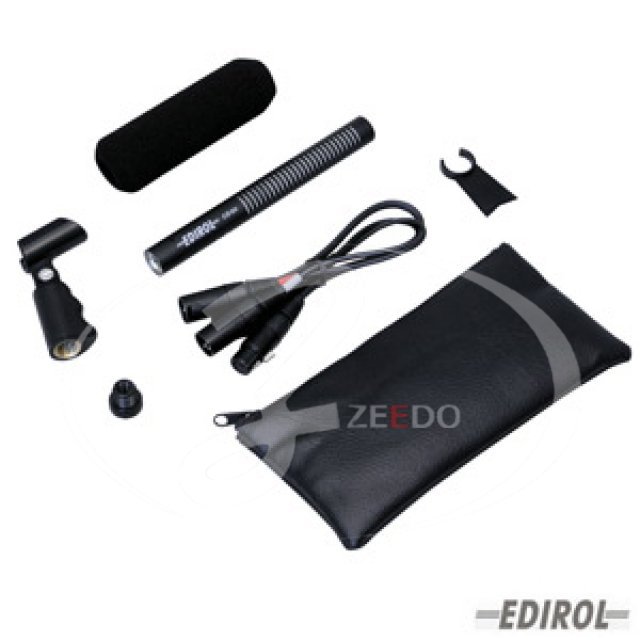

   • Accessories

---

   - Windscreen

---

   - Desktop prop

---

   - Mic stand adapter

---

   - Cable (2m x LR stereo)

---

   - Soft case
