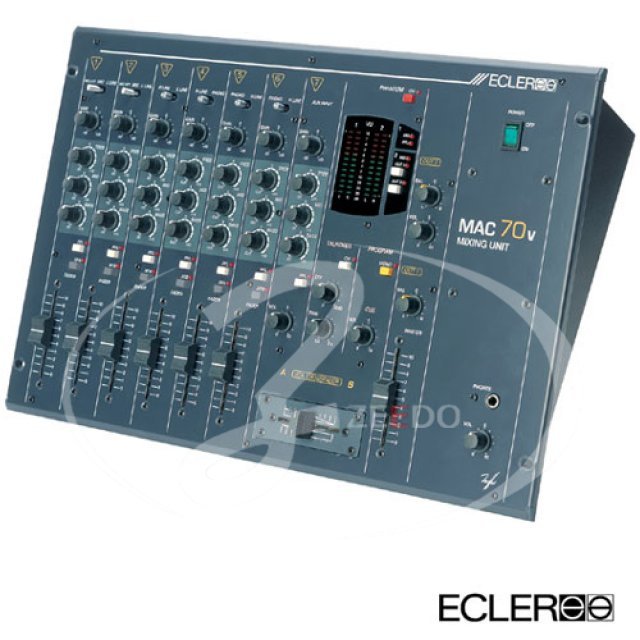

The last three decades have seen over 50.000 DJs worldwide performing their music with a MAC mixer, a true legend which the new MACv Series contributes to perpetuate, as it upgrades its features in accordance to the latest technological advances.
Today�s discotheques, pubs, clubs, mobile systems and everywhere a pristine audio processing is required, can keep enjoying the legendary MAC Series, the most advanced, toughest and reliable mixer around.
Specificatii tehnice
Features:
- Independent input sensibility control for each channel with -20 dB adjustment range, GAIN
- Independent 3 band tone controls for each channel with -20dB to +10 dB adjustment range on channels 1 to 3 +AUX and from CUT to +10 on all other channels of both models.
- Pre-Listening function with headphones volume control and monitoring possibility through the CUE output (with dedicated volume control) and an external amplifier.
- Assignable Talkover function with efficiency and recovery time controls.
- Phantom power supply for condenser microphones, general ON/OFF switch on front panel and individual internal settings.
- Dual VU-Meter
The left VU-Meter displays the prefader level of the channels which have the PFL switch activated or the main mix level when none of the PFL switches is activated.
The right VU-Meter displays the signal level of the output selected in the section below it. If none of these switches is activated, the main mix level will be displayed.
Independent Balance for each channel and L+R switch for summing both stereo signals.

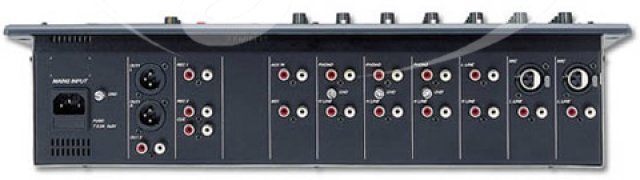

- Inputs: 3 Phono, 4 High Line (high level line for compact discs, DAT, MP3 players), 3 Low Line, Aux In and Mix; plus 2 inputs ready for balanced microphones (XLR3).
- Outputs: 2 Out Outputs with independent volume control (Out 1 balanced), two Rec outputs and one Cue output.
- Ecler Crossfader: Modular, removable fader with VCA circuit. Channels 1, 3 and 5 can be assigned via the XFA switch to the A side of the crossfader. An analogue XFB switch at the even channels 2, 4 and 6 assign these signals to side B of the crossfader. In any case, when these switches are not activated, the signals are directly assigned to the main Mix bus.
Inputs Sensitivity nom/Impedance LINE (LOW) -10dBV/50kW
LINE (HIGH) 0dBV/50kW
PHONO -40dBV/50kW
MICRO (BAL) -50dBV/>1kW
MICRO ATT (BAL) -30dBV/>1kW
MIX 0dBV/>50kW
Outputs Level/Minimum Load OUT 1 (BAL) 0(+6)dBV*/600W 1(2)V
OUT 2 0(+6)dBV*/2.2kW 1(2)V
CUE 0dBV/10kW
REC1 0dBV/10kW
REC2 0dBV/10kW
HEADPHONES 230mW/400 W
Frequency Response LINE 15Hz-35kHz -1dB
MICRO BAL 20Hz-25kHz -1dB
PHONO RIAA -0.5dB
THD+N LINE <0.03%
MICRO <0.09%
PHONO <0.2%
CMRR MICRO >70dB @ 1kHz
Signal Noise Ratio LINE >95dB
MICRO >85dB
PHONO >80dB
Gain control all inputs GAIN - 20dB
Tone control channel 1 to 3 BASS -20/+10dB
MID -20/+10dB
TREBLE -20/+10dB
Tone control channel 4 to 6 BASS -30/+10dB
MID -25/+10dB
TREBLE -30/+10dB
Kill Filters channel 4 to 6 LOW 200Hz
(cut frequency at -6dB) MID 6.5kHz & 200Hz
Slope 12dB/oct in all the cases HIGH 6.5kHz
Phantom voltage +18VDC/5mA max
Mains 90-264VCA 47-63Hz
Power consumption 30VA
Dimensions 482.6x310.5x109mm
Weight 4.8kg
(*)Internally selectable
