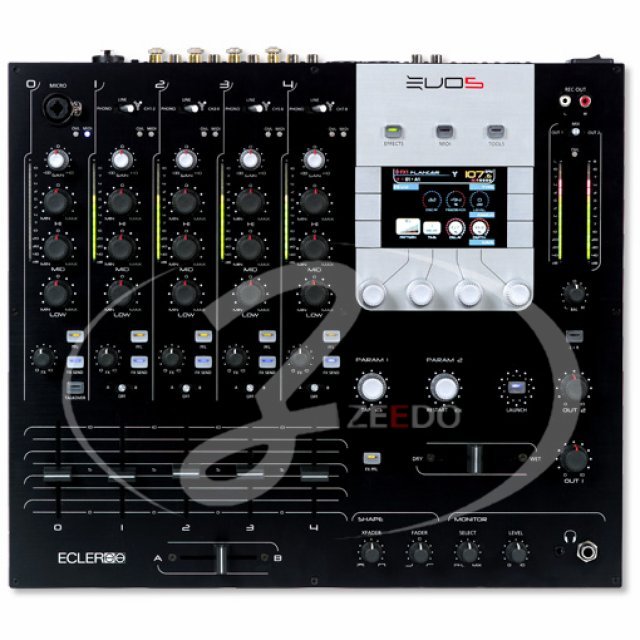

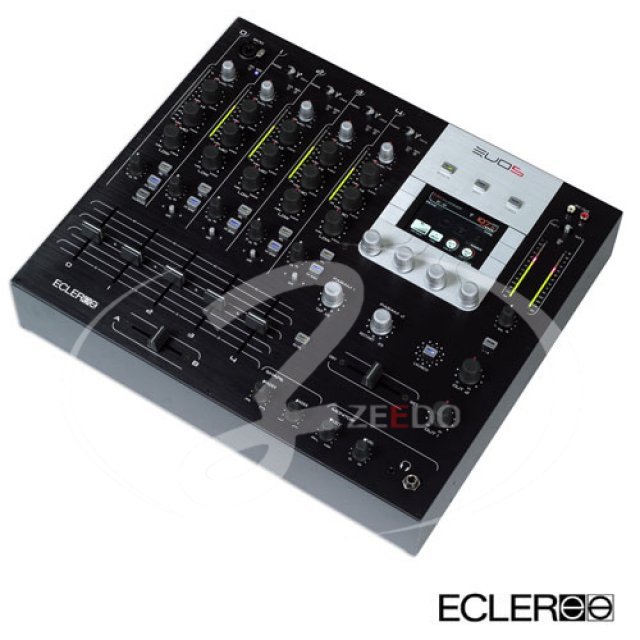

Ecler - Evo 5

---

   The EVO5 features a powerful effects processor at 24bit/96kHz that can be fully edited. It features 8 basic effects: Delay/Echo, Filter, Flanger, Phaser, Transformer, Panoramic, Pitch and Reverb, and all effects parameters can be edited. Moreover the EVO5 offers the new and revolutionary possibility to chain 2 basic effects and so create complex customized effects. A total of 64 different complex effects can be created, named and saved. A precise BPM counter with reliability indication synchronises the effects. Another new feature is the synchronisation by pattern that allows controlling the effects in an extremely creative way. There are also 2 dedicated Microphone effects: Noise Gate and Compressor (also editable). Personal effects presets can be imported and exported using a computer via FireWire with the EVO5 external software (included).

---

   Features

---



---

   � 24 bit stereo analogue to digital and digital to analogue converters

---

   � Sample rate can be set to 96kHz, 88.2kHz, 48kHz or 44.1kHz

---

   � 12 channels � 6 stereo inputs and 6 stereo outputs

---

   � 2 FireWire 6 pin connection IEEE1394 (Hub)

---

   � Channels: 4

---

   � Phono Input: 4

---

   � Line Input: 4

---

   � Mic Input (XLR): 1

---

   � TFT Screen: Full Color (320 x 240px)

---

   � Dimensions: 370(H) x 433(D) x 80(H)mm
