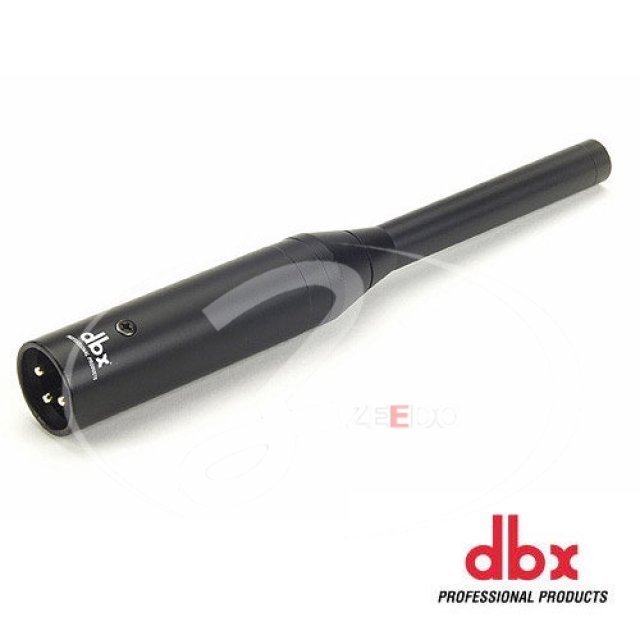

DBX - RTA-M measurement microphone for DRIVERACK

---

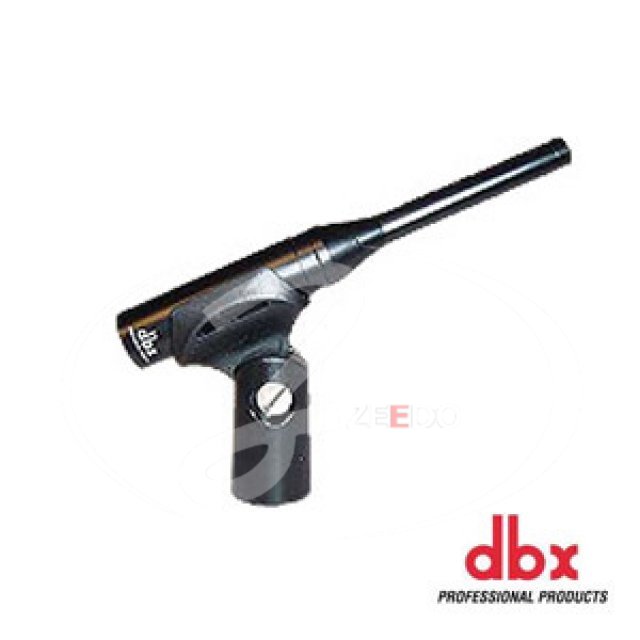

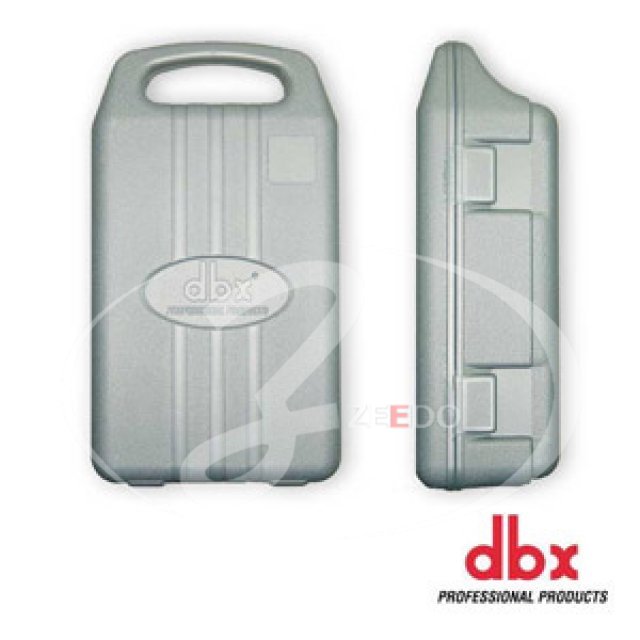

   RTA-M is an omni-directional, flat frequency measurement microphone created for the DriveRack series to pick up all frequencies from 20 Hz to 20 kHz, ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the DriveRack units) and comes with a clip and case.

---

   Features:

---



---

   • Omni-directional

---

   • Element: back electret-condenser

---

   • Impedence: 250 30% (at 1,000 Hz)

---

   • Frequency Response: 20 Hz-20 kHz

---

   • Sensitivity: -63 + -3 dB (0 dB=1V/ microbar 1,000 Hz indicatesd by open circuit)

---

   • Operating Voltage: phantom power 15V D.C. (Will function with 48V)
