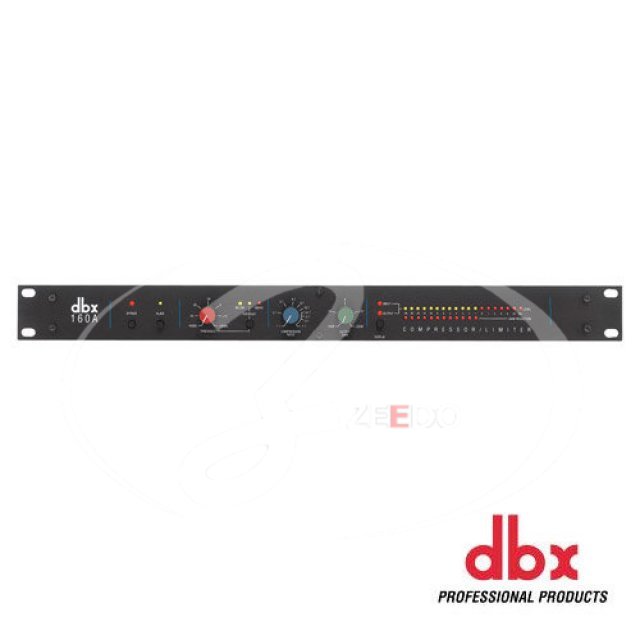

The DBX 160A is a legendary dbx 160 family of compressor/limiters. You can use it in the studio, or on everything from vocals to percussion.
It is also an excellent line driver, perfect for sending signals down long cables to power amp stacks or from remote broadcast trucks. In radio or television broadcast, the 160A will produce stable voice levels, even with non-professional subjects.
Specificatii tehnice
Features:
Compression ratio variable from 1:1 through infinity :1 to negative compression
Precision dual RMS LED display monitors input or putput and gain reduction over a wide range and calibrates for different operating levels
Over 60dB of gain reduction available
Optional output transformer capable
OverEasy or classic hard knee compression with dbx's ultra-musical program dependent attack and release times
Exclusive Infinity+ compression allows negative compression
Independent balanced and unbalanced outputs can drive 600 loads to +24dBm simultaneously. New floating balanced output stage drives any load
Strappable with another 160A for true RMS stereo summing operation
Technical Data:
Analog Inputs
Connector: 1/4" TRS and XLR, Floating Balanced; XLR: Pin 2 hot Phone: Tip Hot
Impedance: 40k
Maximum Level: +24dBu, Balanced or Unabalanced (Absolute)
CMRR: >45dB (any Frequency)
Detector Input: Connector: 14" TRS phone, Floating Balanced
Impedance: >200k
Maximum Level: +28dBu, Balanced or Unbalanced
Output: Connector: XLR, floating balanced; pin 2 hot
Impedance: 30
Maximum Level: (Balanced): +24dBm; < 0.3% THD
Maximum Level: (Unbalanced): +20dBm; < 0.3% THD
Noise: < -90dBu, Unweighted (20Hz - 20kHz)
Frequency Response: 20Hz -20kHz, +0, -0.5dB; +0, -3dB 0.5Hz and 90kHz.
THD: < 0.2%, Typical, any amount of compression up to 40dB @ 1kHz
Analog Outputs
1/4" TRS phone, Unbalanced
Impedance: 20 ohm
Maximum Level: +24dBm
Dimensions: 1.75" x 19" x 6.5" (4.45cm x 48.2cm x 16.51cm)
Weight: Net/Shipping: 4.452 lbs/6.62 lbs (1.99 kg/2.99 kg)
