Detalii
The DriveRack PX Powered Speaker Optimizer has everything you expect to get the most out of your stereo powered speaker system. It even includes stereo or mono subwoofer support. With the included dbx M2 measurement mic, Auto-EQ corrects for audible deficiencies in the room environment. Our patented Advanced Feedback Suppression kills nasty feedback, allowing problem-free operation at higher sound levels, while our patented Subharmonic Synthesizer extends bass response for enhanced bottom end. With all that, you also get classic dbx compression and the protection offered by our graceful PeakPlus limiting.
Specificatii tehnice
Features:
Dual 28-band Graphic EQ
Classic dbx Compressor
Stereo Feedback Elimination with 12 feedback notch filters
120A Subharmonic Synthesizer
Stereo Multi-band Parametric EQ
Stereo PeakPlus Limiters
Pink Noise Generator
Auto-EQ with 28-Band RTA
JBL and other popular powered speakers included in Setup Wizard
dbx M2 Measurement Mic and zippered pouch included
Front panel RTA-Mic XLR input with phantom power
25 User Programs / 25 Factory Programs

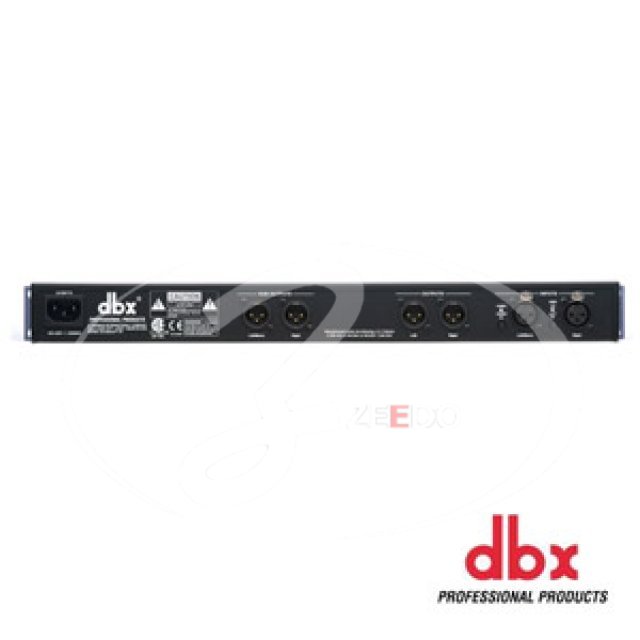

2 Channel XLR Input, 2 Channel XLR Output and 2 Channel XLR Sub Output
24-Bit ADC/24-Bit DAC, >110 dB Dynamic Range
dbx Type IV Conversion System
Full Graphic LCD Display
Technical Data:
Analog Inputs
Number of Inputs: 2 (Stereo) Line inputs
1 RTA Mic input Connectors: 2 Female XLR line inputs 1 XLR RTA Mic input
Type: Electronically balanced, RF filtered
Impedance: >40kΩ Maximum Input Line Level: +20dBu
Input CMRR: >45dB
Phantom Voltage: +15DVC RTA Mic EIN: >-110dBu, 22Hz -22kHz, 150Ω
Analog Outputs
Number of Outputs: 2 (Stereo) Line outputs 2 Sub outputs (mono or stereo)
Connectors: Male XLRXLR Line putputs
2 Male XLR Sub outputs Type: Electronically balanced, RF filtered
Impedance: 120 Ohm
Max Output Level: +20dBu
