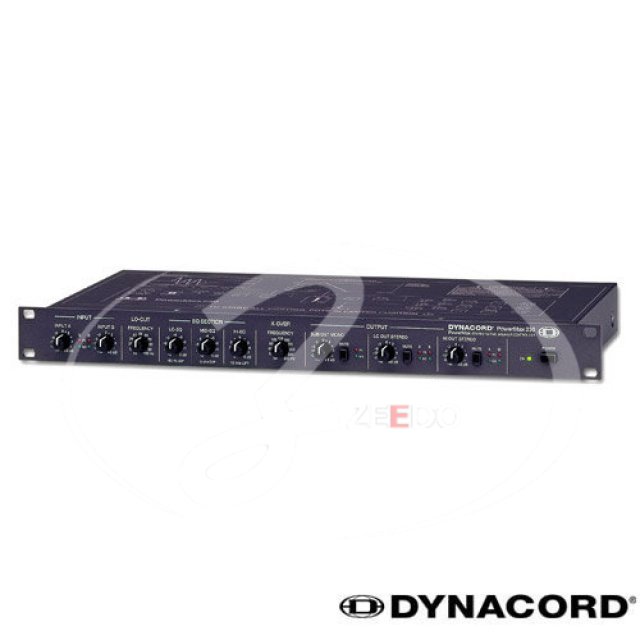

Dynacord - System Controller Power Max 230

---

   The Dynacord PowerMax crossover function provides clearly higher output in the transition range, which makes it perfect for compact speaker cabinets. Furthermore, the EQ-section offers additional tools: The LO-EQ is an adjustable LPN Filter for controlling the "punch" while the MID-EQ - a 4kHz DIP-filter - allows reducing a horn speaker"s "aggressiveness" and the HI-EQ is meant for increasing the brilliance according to one"s personal taste.

---



---

   ï¿½ Crossover Type 2-way Stereo + Sub mono

---

   ï¿½ Crossover Frequency (sweepable) 45-160 Hz

---

   ï¿½ Crossover Filter type PowerMax 12

---

   ï¿½ Filter Options (adjustable) Lo-Cut /EQ-Section

---

   ï¿½ Frequency Response -3dB @ 1 k Hz 16 - 150 kHz

---

   ï¿½ Nominal Gain 0 dB

---

   ï¿½ Maximum Gain + 12 dB

---

   ï¿½ Dynamic Range (+20 dBu, A-weighted) 117 dB

---

   ï¿½ THD + N (20-20 kHz, + 6 dBu) < 0.02 %

---

   ï¿½ THD + N (typical, + 6 dBu) 0,003%

---

   ï¿½ Crosstalk Attenuation > 80 dB

---

   ï¿½ Mute Switch Rejection > 90 dB

---

   ï¿½ Level Control Attenuation > 80 dB

---

   ï¿½ Input Impedance 20 k

---

   ï¿½ Maximum Level (Input: A, B) + 20 dBu

---

   ï¿½ Rated Level (Input: A, B) + 6 dBu

---

   ï¿½ Gain Range (Input: A, B) - to + 6 dB

---

   ï¿½ Output Impedance (HI, LO, SUB) 75

---

   ï¿½ Maximum Level (Outputs: HI, LO, SUB) + 20 dBu

---

   ï¿½ Rated Level (Outputs: HI, LO, SUB) + 6 dBu

---

   ï¿½ Gain Range (Outputs: HI, LO, SUB) - to + 6 dB

---

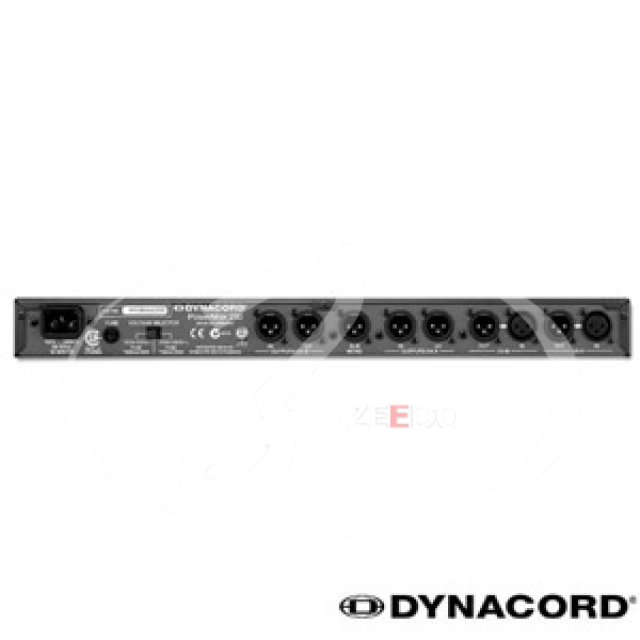

   ï¿½ In-/Output Connectors XLR (active balanced), Inputs with parallel out

---

    Power Consumption 17 W

---

    Power Requirements 50-60 Hz (switchable) 100-120 V / 220-240 V

---

    Dimensions mm (W x H x D) 19 width 483.0 x 43.6 x 226.5 / 1 RU

---

    Weight, net 3.2 kg
