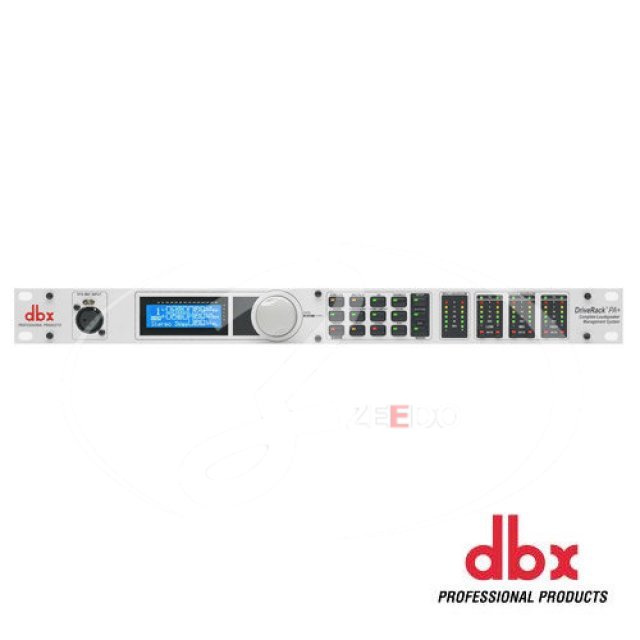

DBX - Driverack PA+

---

   DriveRack PA+ is a complete Loudspeaker Management System that features easy setup, rock-solid reliability and unparalleled sound quality, the version has gone to great lengths to earn its “plus.” With more settings, more control and enhanced circuitry, the sound you seek is right at your fingertips.

---



---

   Furthermore the DriveRack PA+ is loaded with functions and features, it is easy to set-up and use. The dbx exclusive Set Up Wizards walk you through system set up with easy to follow step-by-step instructions. Just pick your speakers and amps from the built-in list on the PA+ and then let the Auto Level Wizard™ fine tune the level settings of each speaker. You can then let the Auto EQ Wizard help you further optimize your sound. Finish up by using the AFS Wizard, which automatically sets filters to eliminate any feedback during performances. Within minutes, your system will sound like it was tuned by a pro! No experience required. Get the most out of your PA with the DriveRack PA+, the worldwide standard in loudspeaker management.

---

   Features:

---



---

   • Auto EQ Wizard with 28-Band RTA Tunes Your System For The Venue

---

   • Stereo Feedback Elimination with 12 feedback notch filters

---

   • dbx 120A Sub-harmonic Synthesizer

---

   • Classic dbx Input Compression

---

   • JBL Speaker and Crownฎ Power Amp Tunings included

---

   • USB Firmware and Speaker Tunings Field Updatable With Harman HiQnet™ System

---

   • Stereo Multi-band Parametric EQ

---

   • Full time RTA function

---

   • Front-Panel Output Mutes

---

   • AFS Wizard Helps Eliminate Feedback

---

   • Pink Noise Generator (used with Auto EQ and Auto Level Wizards)

---

   • Linked Stereo DSP Processing for ease of use

---

   • 24-Bit ADC/24-Bit DAC, >113 dB Dynamic Range

---

   • 2-Channel XLR Input and 6-Channel XLR Output

---

   • 2x3, 2x4, 2x5, 2x6 Crossover Configurations

---

   • Dual 28-band Graphic EQ- Linked or Dual Mono

---

   • Stereo Output Limiters

---

   • Setup Wizard Steps Through Speaker and Amp Selection and Levels

---

   • Output Alignment Delay

---

   • Power on/off Mute Circuitry

---

   • Front-panel RTA-M XLR input with phantom power

---

   • 25 User Programs/25 Factory Programs

---

   • Full Graphic LCD Display

---

   • Front Panel Input and Output Meters

---



---

   Technical Data:

---



---

   Analog Inputs

---

   • Number of Inputs: (2) Line inputs. (1) RTA Mic input

---

   • Connectors:(2) Female XLR line inputs, XLR RTA Mic input

---

   • Type:Electronically balanced/RF filtered

---

   • Impedance:> 40k ohm

---

   • Maximum Input Level: >+20dBu

---

   • CMRR:>45dB

---

   • RTA Mic Phantom Voltage+15VDC

---

   • RTA Mic EIN:< -117dBu, 22Hz-22kHz, 150

---



---

   Analog Outputs

---

   • Number of Outputs: (6) Line Outputs

---

   • Connectors: Male XLR

---

   • Type: Electronically balanced, RF filtered

---

   • Impedance:120 ohms

---

   • Max Output Level:+20dBu

---

   • CMRR: > 45dB

---

   • Alignment Delay:10ms per channel (60ms total)

---

   • Weight: 5.5 lbs.(2.5 kg) Shipping weight 7 lbs. (3.18 kg)

---

   • Dimensions: 1.75” (4.4cm) H x 5.75”(14.6cm) D x 19” (48.26cm) W
