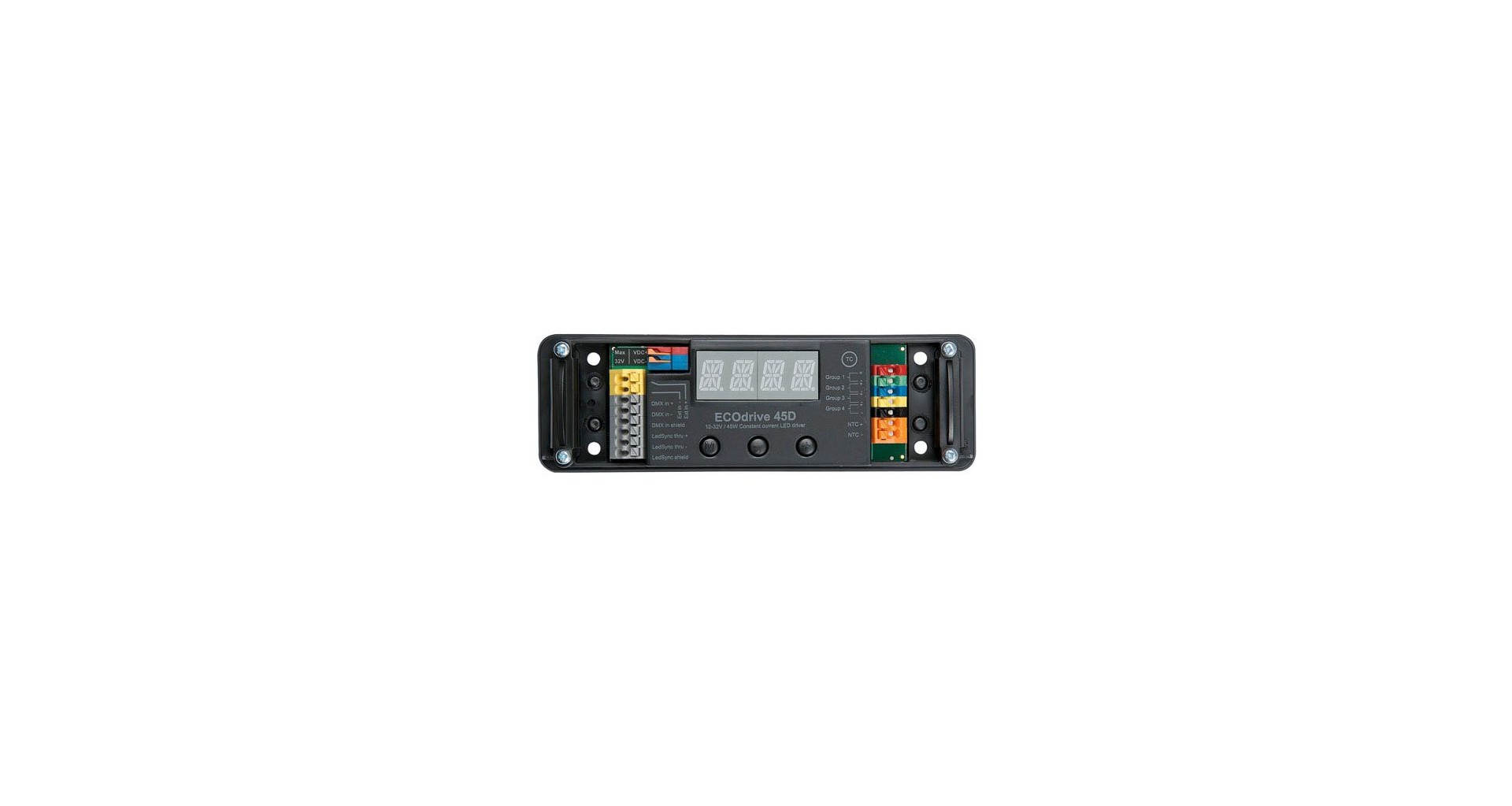

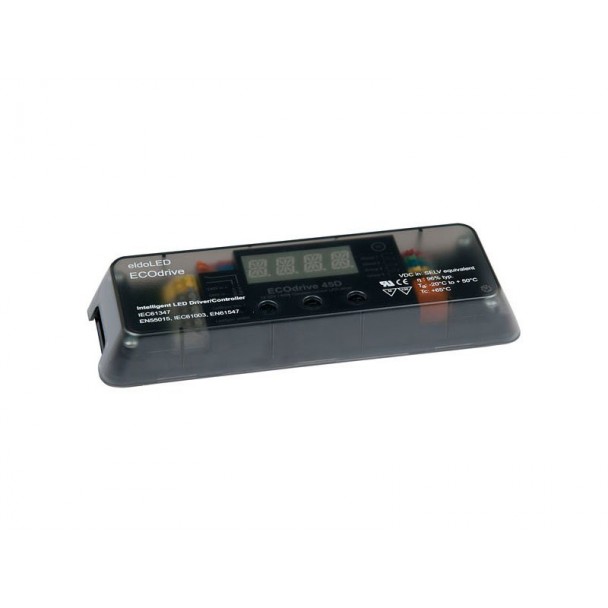

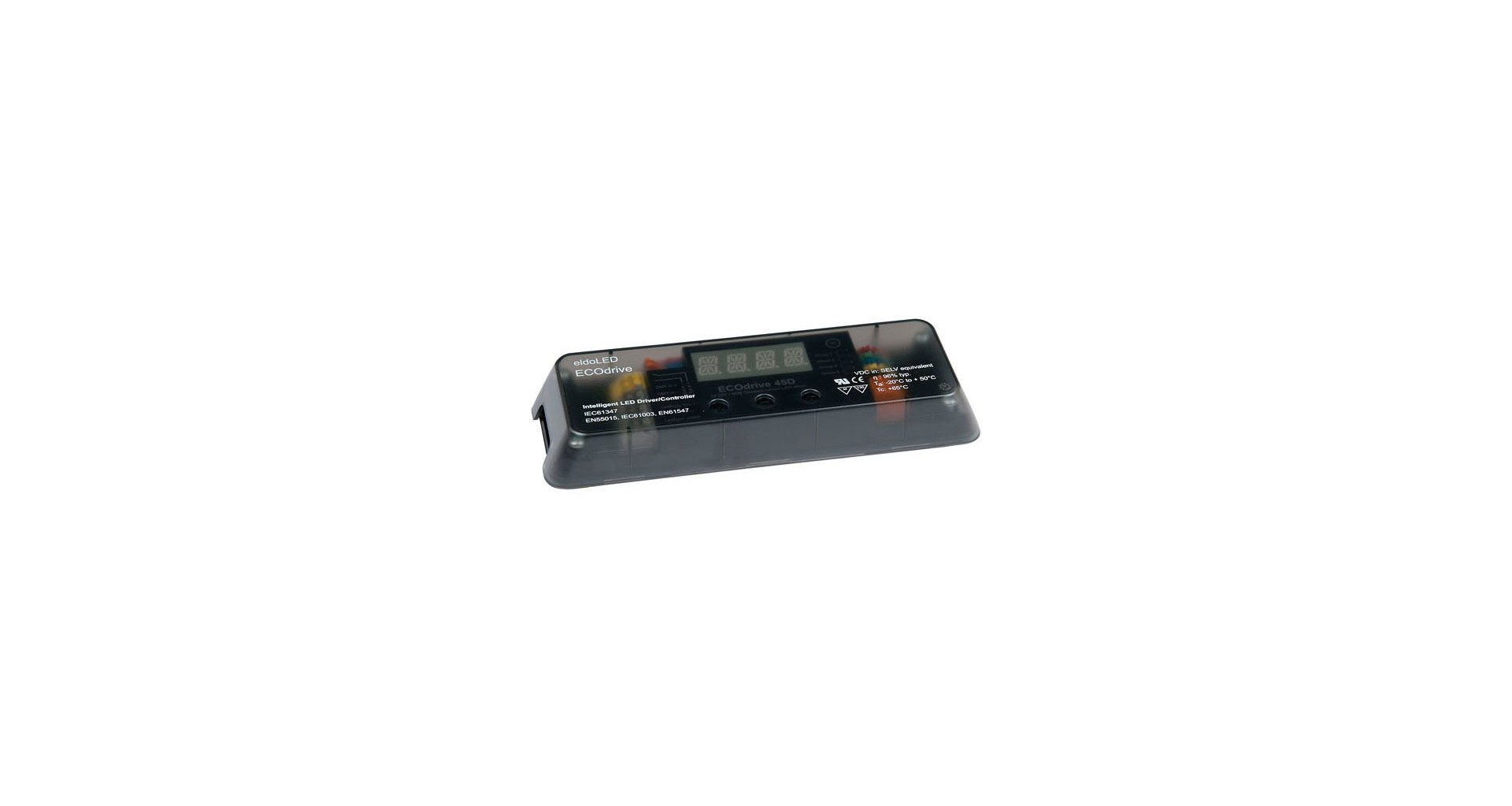

Artecta ECOdrive DC45W Controller LED

ZD-017165

Artecta
Artecta ECOdrive DC45W

Nou

In rate de la 0.00 Lei / luna - vezi detalii

IN STOC FURNIZOR
Produsul este disponibil la furnizor si poate fi livrat in maxim 12 zile lucratoare.


Comanda telefonic: 0735.088.888

Descriere scurta:

ECOdrive DC45WConstant Current RGB(W) LED driver/controllerThe ECOdrive DC45W is a highly integrated, cost effective, enclosed and by display easy-to-configureconstant current driver/controller for indoor LED lighting applications. The ECOdrive can be integratedin a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), theECOdrive DC45W is the ideal choise for powering 200mA - 1400mA HB LED`s

Unitate de vanzare: bucata

Vezi descrierea completa


Comanda Telefonic: 0735 088 888Vezi modalitatile de plata

Citeste comentariile clientilor (0) Lasa un comentariu

Acest produs nu are puncte de loialitate.

Controller LED Artecta ECOdrive DC45W:

• LED current settings: 200-1400mA (in 50mA steps)
• Power output range: 0-45 Watt
• Operarating supply: 12V-32V DC (Efficiency up to 95%)
• Independed LED groups: up to 4
• Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
• Cooling: Passive (integrated heat spreader)
• Relative huminity: non condensing
• Network input: USITT DMX-512, LedSync
• Network output: USITT DMX-512, LedSync
• Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
• Certifications: CE: IEC 61347, EN 55015, IEC61003, EN 61547
Tip produsController LED

Scrieţi o recenzie

Artecta ECOdrive DC45W

Artecta ECOdrive DC45W

ECOdrive DC45WConstant Current RGB(W) LED driver/controllerThe ECOdrive DC45W is a highly integrated, cost effective, enclosed and by display easy-to-configureconstant current driver/controller for indoor LED lighting applications. The ECOdrive can be integratedin a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), theECOdrive DC45W is the ideal choise for powering 200mA - 1400mA HB LED`s
