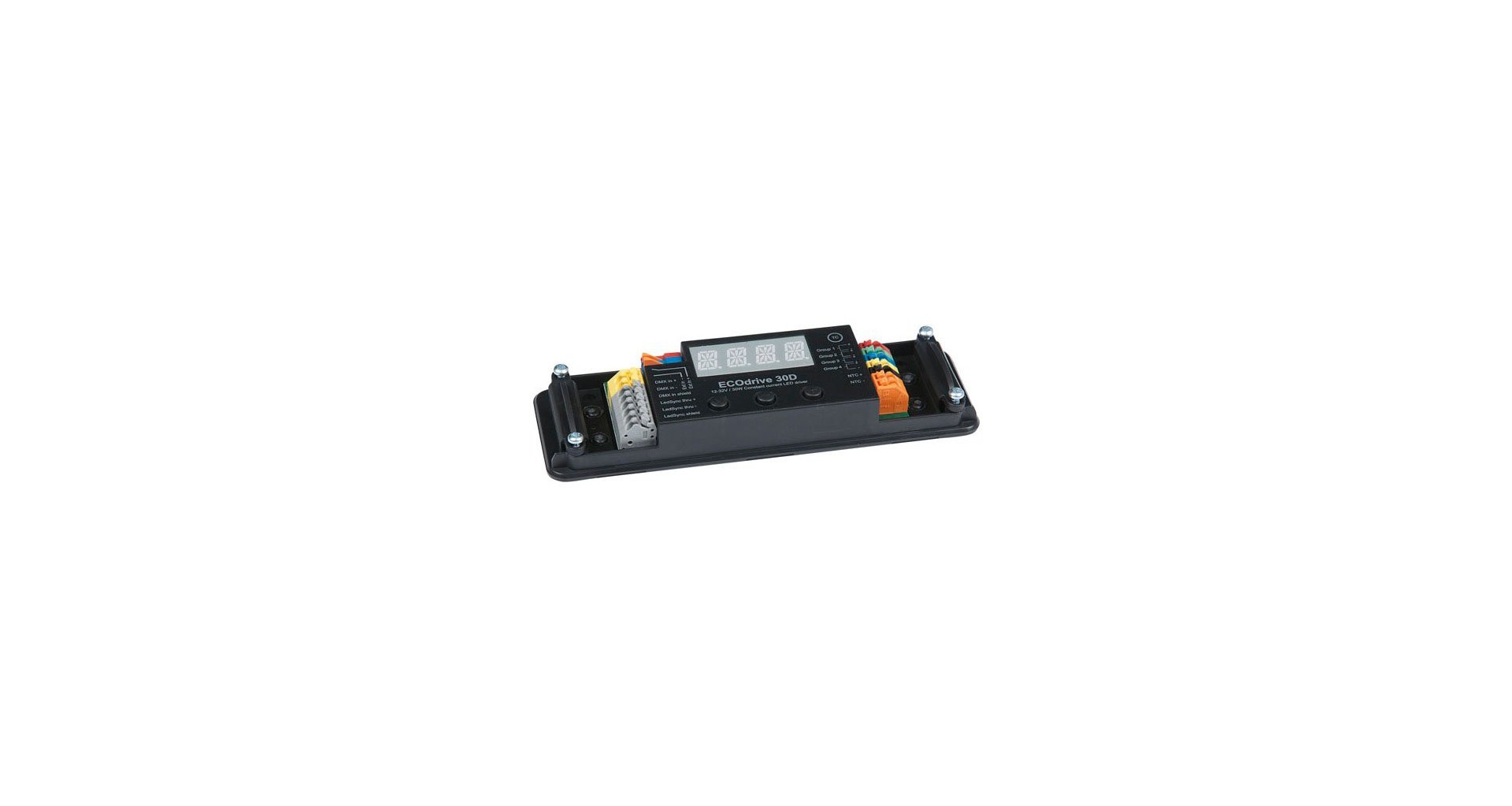

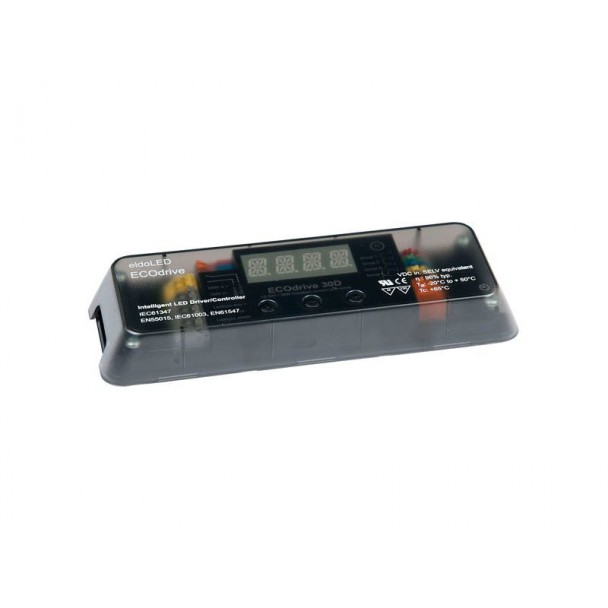

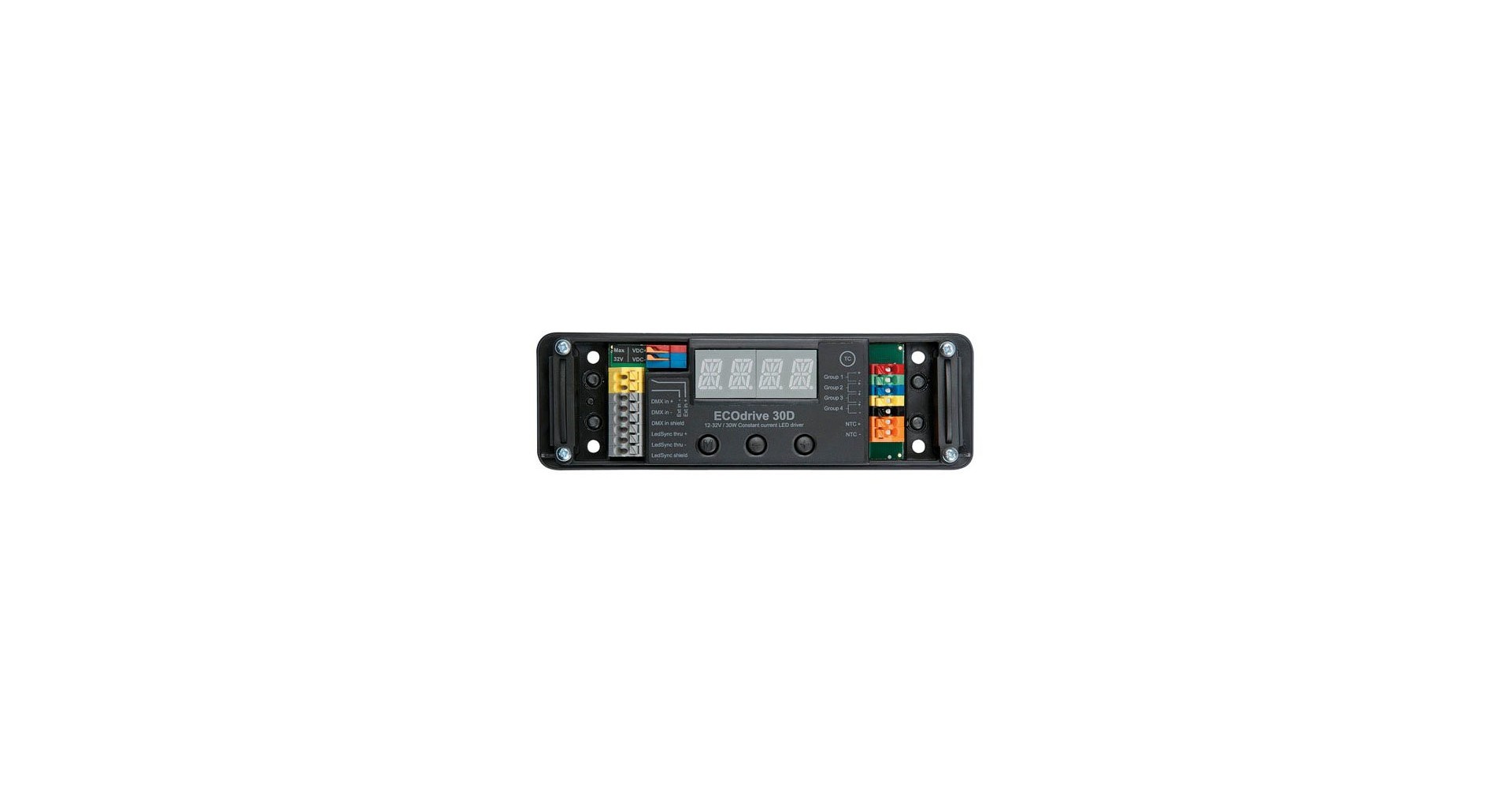

Artecta ECOdrive DC30W

Controller LED ZD-017164

Artecta ECOdrive DC30W

Artecta ECOdrive DC30W

ECOdrive DC30WConstant Current RGB(W) LED driver/controllerThe ECOdrive DC30W is a highly integrated, cost effective, enclosed and by display easy-to-configureconstant current driver/controller for indoor LED lighting applications. The ECOdrive can be integratedin a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), theECOdrive DC30W is the ideal choise for powering 200mA - 1050mA HB LED`s

Unitate de vanzare: bucata

Vezi descrierea completa

Acest produs nu are puncte de fidelitate.

Achizitioneaza in SICAP
Artecta ECOdrive DC30W

Artecta ECOdrive DC30W

Solicita postarea acestui produs in SICAP. Daca ai si alte cerinte, scrie-ne in campul mai jos si un consultant te va contacta in cel mai scurt timp.
Numele institutiei si cerinta dumneavoastra
Nume persoana de contact
Email
Telefon




Informatii produs:

Artecta ECOdrive DC30W

ECOdrive DC30WConstant Current RGB(W) LED driver/controllerThe ECOdrive DC30W is a highly integrated, cost effective, enclosed and by display easy-to-configureconstant current driver/controller for indoor LED lighting applications. The ECOdrive can be integratedin a network or used as a standalone device. With a wide supply voltage of(12V-32V DC), theECOdrive DC30W is the ideal choise for powering 200mA - 1050mA HB LED`s

Unitate de vanzare: bucata


Acest produs nu are puncte de fidelitate.

Artecta ECOdrive DC30W:

• LED current settings: 200-1050mA (in 50mA steps)
• Power output range: 0-30 Watt
• Operarating supply: 12V-32V DC (Efficiency up to 95%)
• Independed LED groups: up to 4
• Environmental rat.: Ta range: -20°C to +50°C (-4°F to +122°F)
Tc max. 65°C (149°F)
T heatsink max: 60°C (140°F)
• Cooling: Passive (integrated heat spreader)
• Relative huminity: non condensing
• Network input: USITT DMX-512, LedSync
• Network output: USITT DMX-512, LedSync
• Network resolution: 8 bit (4 Network channels used by driver) or 16 bit
(8 Network channels used by driver)
• Certifications: CE: IEC 61347, EN 55015, IEC61003, EN 61547

Vezi toate produsele de tip Controlere si dimmeri Artecta
Vezi toate produsele din categoria Controlere si dimmeri
Vezi toate produsele apartinand producatorului Artecta

Specificatii Tehnice Artecta ECOdrive DC30W

Tip produs Controller LED
Garantie 24
